<span style="font-family: "trebuchet ms" , sans-serif; font-size: large;"><b>JOB SHEET</b></span><br />
<span style="font-family: "trebuchet ms" , sans-serif; font-size: large;"><b>SMK TUNAS HARAPAN PATI</b></span></div>
<div style="text-align: center;">
<br /></div>
<div style="text-align: center;">
<br /></div>
<table border="1" style="text-align: center; width: 666px;">
<tbody>
<tr>
<td border="1" style="text-align: center; width: 220px;"><b><span style="font-family: "trebuchet ms" , sans-serif;">Program Keahlian</span></b></td>
<td border="1" style="text-align: center; width: 220px;"><b><span style="font-family: "trebuchet ms" , sans-serif;">Mata Pelajaran</span></b></td>
<td border="1" style="text-align: center; width: 220px;"><b><span style="font-family: "trebuchet ms" , sans-serif;">Kode Mata Pelajaran</span></b></td>
</tr>
<tr>
<td border="1" style="text-align: center; width: 220px;"><span style="font-family: "trebuchet ms" , sans-serif;">Teknik Komputer dan Jaringan</span></td>
<td border="1" style="text-align: center; width: 220px;"><span style="font-family: "trebuchet ms" , sans-serif;">Administrasi Sistem Jaringan</span></td>
<td border="1" style="text-align: center; width: 220px;"><span style="font-family: "trebuchet ms" , sans-serif;">11.09/ASJ/1920</span></td>
</tr>
<tr>
<td border="1" style="text-align: center; width: 220px;"><b><span style="font-family: "trebuchet ms" , sans-serif;">Tingkat / Kelas</span></b></td>
<td border="1" style="text-align: center; width: 220px;"><b><span style="font-family: "trebuchet ms" , sans-serif;">Materi Pokok</span></b></td>
<td border="1" style="text-align: center; width: 220px;"><b><span style="font-family: "trebuchet ms" , sans-serif;">Waktu Pembelajaran</span></b></td>
</tr>
<tr>
<td border="1" style="text-align: center; width: 220px;"><span style="font-family: "trebuchet ms" , sans-serif;">XI TKJ 1 2 3 4</span></td>
<td border="1" style="text-align: center; width: 220px;"><table class="NormalTable" style="text-align: center;"><tbody>
<tr><td width="200"><table class="NormalTable"><tbody>
<tr><td style="text-align: center;" width="200"><span style="font-family: "trebuchet ms" , sans-serif;">Mengkonfigurasi DHCP Server</span></td></tr>
</tbody></table>
</td></tr>
</tbody></table>
</td>
<td border="1" style="text-align: center; width: 220px;"><span style="font-family: "trebuchet ms" , sans-serif;">6 x 45 Menit</span></td>
</tr>
<tr>
<td border="1" rowspan="4" style="text-align: center; width: 220px;"><div class="separator" style="clear: both; text-align: center;">
</div>
<div class="separator" style="clear: both; text-align: center;">
</div>
<div class="separator" style="clear: both; text-align: center;">
</div>
<div class="separator" style="clear: both; text-align: center;">
</div>
<div class="separator" style="clear: both; text-align: center;">
</div>
<b><span style="font-family: "trebuchet ms" , sans-serif;"></span></b></td>
<td border="1" style="text-align: center; width: 220px;"><b><span style="font-family: "trebuchet ms" , sans-serif;">Nama Jobsheet</span></b></td>
<td border="1" style="text-align: center; width: 220px;"><b><span style="font-family: "trebuchet ms" , sans-serif;">Tanggal Praktikum</span></b></td>
</tr>
<tr>
<td border="1" style="width: 220px;">Mengkonfigurasi <span style="font-family: "trebuchet ms" , sans-serif;">DHCP Server Pada Debian 7</span></td>
<td border="1" style="text-align: center; width: 220px;"><span style="font-family: "trebuchet ms" , sans-serif;">November 2019</span></td>
</tr>
<tr>
<td border="1" style="text-align: center; width: 220px;"><span style="font-family: "trebuchet ms" , sans-serif;"><b>Nama : Tegar Yusuf Fathir Ro'an</b></span><br />
<br />
<b><span style="font-family: "trebuchet ms" , sans-serif;"><br /></span></b>
<b><span style="font-family: "trebuchet ms" , sans-serif;"><br /></span></b>
<b><span style="font-family: "trebuchet ms" , sans-serif;"><br /></span></b></td>
<td border="1" style="text-align: center; width: 220px;"><b><span style="font-family: "trebuchet ms" , sans-serif;">Kode Score</span></b></td>
</tr>
</tbody></table>
<div style="text-align: center;">
<br />
<br /></div>
<div style="text-align: justify;">
<div style="text-align: center;">
<div style="text-align: justify;">
<div style="text-align: center;">
<span style="font-family: "trebuchet ms" , sans-serif;"><span style="color: blue; font-size: large;"><br /></span></span></div>
</div>
</div>
<div style="text-align: left;">
<div style="text-align: justify;">
<div style="text-align: justify;">
<span style="font-family: "trebuchet ms" , sans-serif;"><span style="color: blue; font-size: large;">I. TUJUAN</span></span></div>
</div>
</div>
</div>
<blockquote class="tr_bq" style="text-align: justify;">
<span style="font-family: "trebuchet ms" , sans-serif;">1. Siswa dapat mengenal K<span style="font-family: "trebuchet ms" , sans-serif; text-align: center;">onfigurasi DHCP Server</span> pada Linux</span></blockquote>
<blockquote class="tr_bq" style="text-align: justify;">
<span style="font-family: "trebuchet ms" , sans-serif;">2. Siswa dapat mengenal K<span style="font-family: "trebuchet ms" , sans-serif; text-align: center;">onfigurasi DHCP Server</span> pada Debian 7</span></blockquote>
<blockquote class="tr_bq" style="text-align: justify;">
<span style="font-family: "trebuchet ms" , sans-serif;">3. Siswa dapat m</span><span style="text-align: center;">engkonfigurasi </span><span style="font-family: "trebuchet ms" , sans-serif; text-align: center;">DHCP Server Pada Debian 7</span></blockquote>
<blockquote class="tr_bq">
<!--more--></blockquote>
<span style="color: blue; font-family: "trebuchet ms" , sans-serif; font-size: large;"></span><br />
<div style="text-align: justify;">
<span style="color: blue; font-family: "trebuchet ms" , sans-serif; font-size: large;">II. ALAT DAN BAHAN</span></div>
<span style="color: blue; font-family: "trebuchet ms" , sans-serif; font-size: large;">
</span>
<br />
<blockquote class="tr_bq" style="text-align: justify;">
<span style="font-family: "trebuchet ms" , sans-serif;">1. LCD Proyektor<br />2. PC atau Laptop yang telah terinstal Windows 7, Windows 8 atau Windows 10<br />3. Panduan </span><span style="font-family: "trebuchet ms" , sans-serif;">m</span><span style="text-align: center;">engkonfigurasi </span><span style="font-family: "trebuchet ms" , sans-serif; text-align: center;">DHCP Server Pada Debian 7</span></blockquote>
<div style="text-align: justify;">
<span style="font-family: "trebuchet ms" , sans-serif;"><br /></span></div>
<div style="text-align: justify;">
<span style="color: blue; font-family: "trebuchet ms" , sans-serif; font-size: large;">III. KESELAMATAN KERJA</span></div>
<blockquote class="tr_bq" style="text-align: justify;">
<span style="font-family: "trebuchet ms" , sans-serif;">1. Menghidupkan PC atau Laptop sesuai dengan aturan yang telah ditetapkan</span><span style="font-family: "trebuchet ms" , sans-serif;"><br /></span><span style="font-family: "trebuchet ms" , sans-serif;">2. Mengatur kabel power serapi mungkin</span><span style="font-family: "trebuchet ms" , sans-serif;"><br /></span><span style="font-family: "trebuchet ms" , sans-serif;">3. Menggunakan kaca mata pelindung radiasi</span><span style="font-family: "trebuchet ms" , sans-serif;"><br /></span><span style="font-family: "trebuchet ms" , sans-serif;">4. Menggunakan screen monitor untuk keamanan data</span><span style="font-family: "trebuchet ms" , sans-serif;"><br /></span><span style="font-family: "trebuchet ms" , sans-serif;">5. Membackup data data penting ke memori eksternal</span><span style="font-family: "trebuchet ms" , sans-serif;"><br /></span><span style="font-family: "trebuchet ms" , sans-serif;">6. Mematikan komputer sesuai dengan aturan yang telah ditetapkan</span></blockquote>
<div style="text-align: left;">
<div style="text-align: justify;">
<div style="text-align: center;">
<br /></div>
</div>
</div>
<div style="text-align: justify;">
<div style="text-align: left;">
<div style="text-align: justify;">
<div style="text-align: justify;">
<span style="color: blue; font-family: "trebuchet ms" , sans-serif; font-size: large;">IV. LANGKAH KERJA</span></div>
</div>
</div>
</div>
<div style="text-align: justify;">
<div style="text-align: justify;">
<br /></div>
</div>
<blockquote class="tr_bq" style="text-align: justify;">
<div style="text-align: justify;">
<div style="text-align: justify;">
<span style="font-family: "trebuchet ms" , sans-serif;">1. Buka software Debian sehingga keluar prompt :</span></div>
</div>
</blockquote>
<div style="text-align: center;">
<div style="text-align: center;">
<blockquote class="tr_bq" style="text-align: center;">
<span style="font-size: large;"><i style="background-color: white; color: red; font-family: Arial, Tahoma, Helvetica, FreeSans, sans-serif; text-align: left;">Tegar </i><i style="font-family: "trebuchet ms", sans-serif;"><span style="color: red;">login:</span></i></span></blockquote>
</div>
</div>
<blockquote class="tr_bq" style="text-align: justify;">
<div style="text-align: justify;">
<div style="text-align: justify;">
<span style="font-family: "trebuchet ms" , sans-serif;">2.Masuk ke user root dengan mengetik root dan passwordnya</span></div>
</div>
</blockquote>
<blockquote class="tr_bq" style="text-align: center;">
<div style="text-align: center;">
<div style="text-align: center;">
<span style="color: red; font-family: "trebuchet ms" , sans-serif; font-size: large;"><i style="background-color: white; font-family: Arial, Tahoma, Helvetica, FreeSans, sans-serif; text-align: left;">Tegar </i><i>login:root</i></span></div>
</div>
</blockquote>
<blockquote class="tr_bq" style="text-align: center;">
<div style="text-align: center;">
<div style="text-align: center;">
<span style="font-family: "trebuchet ms" , sans-serif;">password : <i><span style="color: red; font-size: large;">123</span></i></span></div>
</div>
</blockquote>
<blockquote class="tr_bq" style="text-align: justify;">
<div style="text-align: justify;">
<div style="text-align: justify;">
<span style="font-family: "trebuchet ms" , sans-serif;"> sehingga keluar user root sebagai berikut :</span></div>
</div>
</blockquote>
<blockquote class="tr_bq" style="text-align: center;">
<div style="text-align: center;">
<div style="text-align: center;">
<span style="font-family: "trebuchet ms" , sans-serif; font-size: large;"><i style="color: red;"><span style="background-color: white; font-family: "trebuchet ms" , sans-serif;">root@tegar</span></i><i style="background-color: white; color: red; font-family: arial, tahoma, helvetica, freesans, sans-serif; text-align: left;"> </i><i><span style="color: red; font-size: xx-small;">:~# </span></i></span></div>
</div>
</blockquote>
<blockquote class="tr_bq" style="text-align: justify;">
<div style="text-align: justify;">
<div style="text-align: justify;">
<span style="font-family: "trebuchet ms" , sans-serif;">3.</span><span style="font-family: "trebuchet ms" , sans-serif;"> </span><span style="font-family: "trebuchet ms" , sans-serif; text-align: left;">Melakukan Cek interface apakah menggunakan eth0 ataukah eth1.</span></div>
</div>
</blockquote>
<blockquote class="tr_bq" style="text-align: justify;">
<div style="text-align: justify;">
<div style="text-align: justify;">
<blockquote class="tr_bq">
<span style="font-family: "trebuchet ms" , sans-serif; text-align: left;">Perintahnya adalah :</span></blockquote>
</div>
</div>
</blockquote>
<div style="text-align: center;">
<div style="text-align: center;">
<div style="text-align: center;">
<div dir="ltr" style="text-align: left;" trbidi="on">
<div>
<blockquote class="tr_bq">
<div style="text-align: center;">
<span style="color: red; font-size: large;"><i>root@tegar:~# ifconfig -a</i></span></div>
</blockquote>
<div style="text-align: center;">
</div>
<blockquote class="tr_bq">
<blockquote class="tr_bq">
<span style="font-family: "trebuchet ms" , sans-serif;">Dari gambar di atas, dapat diketahui bahwa laptop sedang bekerja pada eth0.</span></blockquote>
</blockquote>
<br />
<blockquote class="tr_bq" style="text-align: justify;">
<span style="font-family: "trebuchet ms" , sans-serif;">4. Menentukan konfigurasi IP (Internet Protokol) pada server Debian. </span></blockquote>
<blockquote class="tr_bq" style="text-align: justify;">
<blockquote class="tr_bq">
<span style="font-family: "trebuchet ms" , sans-serif;">Perintahnya adalah :</span></blockquote>
</blockquote>
<blockquote class="tr_bq" style="text-align: justify;">
<div style="text-align: center;">
<span style="color: red; font-size: large;"><i>root@tegar:~# nano /etc/network/interfaces</i></span></div>
</blockquote>
<blockquote class="tr_bq" style="text-align: justify;">
<blockquote class="tr_bq">
Akan muncul tulisan sebagai berikut :</blockquote>
</blockquote>
<blockquote class="tr_bq" style="text-align: justify;">
<blockquote class="tr_bq">
<i><span style="color: blue; font-family: "trebuchet ms" , sans-serif; font-size: large;">allow-hotplug eth0 </span></i></blockquote>
</blockquote>
<blockquote class="tr_bq" style="text-align: justify;">
<blockquote class="tr_bq">
<i><span style="color: blue; font-family: "trebuchet ms" , sans-serif; font-size: large;">iface eth0 inet dhcp </span></i></blockquote>
</blockquote>
<div style="text-align: justify;">
<br /></div>
<div style="text-align: center;">
</div>
<div style="text-align: justify;">
<br /></div>
<div style="text-align: justify;">
<blockquote class="tr_bq">
<blockquote class="tr_bq">
<span style="font-family: "trebuchet ms" , sans-serif;">Ganti tulisan di atas dengan</span></blockquote>
</blockquote>
</div>
<div style="text-align: justify;">
<blockquote class="tr_bq">
<blockquote class="tr_bq">
<i><span style="color: blue; font-size: large;">auto eth0</span></i></blockquote>
</blockquote>
</div>
<div style="text-align: justify;">
<blockquote class="tr_bq">
<blockquote class="tr_bq">
<i><span style="color: blue; font-size: large;">iface eth0 inet static</span></i></blockquote>
</blockquote>
</div>
<div style="text-align: justify;">
<blockquote class="tr_bq">
<blockquote class="tr_bq">
<i><span style="color: blue; font-size: large;">address 192.168.56.61</span></i></blockquote>
</blockquote>
</div>
<div style="text-align: justify;">
<blockquote class="tr_bq">
<blockquote class="tr_bq">
<i><span style="color: blue; font-size: large;">netmask 255.255.255.0</span></i></blockquote>
</blockquote>
</div>
<div style="text-align: justify;">
<blockquote class="tr_bq">
<blockquote class="tr_bq">
<i><span style="color: blue; font-size: large;">broadcast 192.168.1.255</span></i></blockquote>
</blockquote>
</div>
<div style="text-align: justify;">
<div style="text-align: center;">
<div class="separator" style="clear: both; text-align: center;">

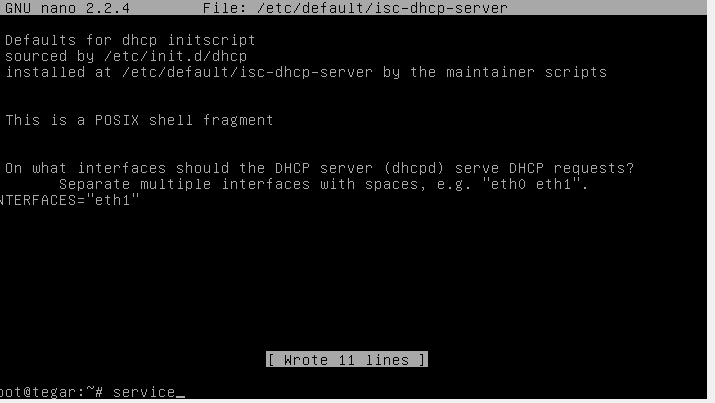

<a href="https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiJoT3gDPzcD1Dzyd5rG9888_HmsYzONjblSE22McUPqbjKqlUdFM4-UierYkymratc1dZb4xCUZytJSVOXxQ8yCbWxe4dJ_UDNARxYvuowsQ0mar4_GMtn-cftP4pPCjgk7wuBavVTEAY/s1600/Capture.PNG" imageanchor="1" style="margin-left: 1em; margin-right: 1em;"><img border="0" data-original-height="396" data-original-width="713" height="221" src="https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiJoT3gDPzcD1Dzyd5rG9888_HmsYzONjblSE22McUPqbjKqlUdFM4-UierYkymratc1dZb4xCUZytJSVOXxQ8yCbWxe4dJ_UDNARxYvuowsQ0mar4_GMtn-cftP4pPCjgk7wuBavVTEAY/s400/Capture.PNG" width="400" /></a></div>
</div>
</div>
<div style="text-align: justify;">
<br /></div>
<div style="text-align: justify;">
<blockquote class="tr_bq">
<blockquote class="tr_bq">
<span style="font-family: "trebuchet ms" , sans-serif;">untuk menuliskan address di atas, lihat dulu ke <span style="color: blue;">VirtualBox Host-Only Network</span> pada Windows, lihat gambar di bawah ini :</span></blockquote>
</blockquote>
</div>
<div style="text-align: justify;">
<br /></div>
<div style="text-align: justify;">
<br /></div>
<div style="text-align: justify;">
<div style="text-align: center;">
<div class="separator" style="clear: both; text-align: center;">

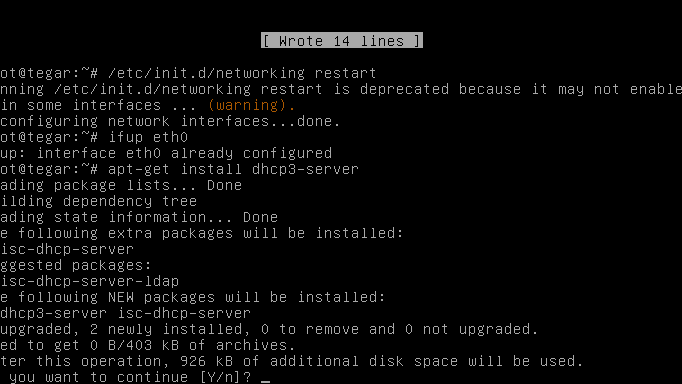

<a href="https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEh9wkQVRPuWi165xzgTOXDZDfqv-lqFcNznkF87EyIU9BzNZU3Cpyn9KPY0M3Eom_sE9fSjVkSxplm3wK0zzn6rf9nCfJPVBmUnrTo3DCzL0Z9B7JteK3fqvAF9_bmEzd0lR2CYuGuhzrM/s1600/Capture1.PNG" imageanchor="1" style="margin-left: 1em; margin-right: 1em;"><img border="0" data-original-height="579" data-original-width="680" height="340" src="https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEh9wkQVRPuWi165xzgTOXDZDfqv-lqFcNznkF87EyIU9BzNZU3Cpyn9KPY0M3Eom_sE9fSjVkSxplm3wK0zzn6rf9nCfJPVBmUnrTo3DCzL0Z9B7JteK3fqvAF9_bmEzd0lR2CYuGuhzrM/s400/Capture1.PNG" width="400" /></a></div>
<br /></div>
</div>
<div style="text-align: justify;">
<br /></div>
<div style="text-align: justify;">
<br /></div>
<div style="text-align: justify;">
<blockquote class="tr_bq">
<blockquote class="tr_bq">
<span style="font-family: "trebuchet ms" , sans-serif;">Gambar di atas, menunjukkan IP Address dari Windows adalah 192.168.56.1. Oleh karena itu, IP Address pada Debian di atas dipilih 192.168.56.61. Nomor IP ini akan kita jadikan IP Router pada DHCP</span></blockquote>
</blockquote>
</div>
<div style="text-align: justify;">
<blockquote class="tr_bq">
<blockquote class="tr_bq">
<span style="font-family: "trebuchet ms" , sans-serif;">Simpan konfigurasi di atas dengan :</span></blockquote>
</blockquote>
</div>
<div style="text-align: justify;">
<blockquote class="tr_bq">
<br />
<blockquote class="tr_bq">
<span style="color: red; font-size: large;"><i>Ctrl+X</i></span></blockquote>
<blockquote class="tr_bq">
<span style="color: red; font-size: large;"><i>Y</i></span></blockquote>
<blockquote class="tr_bq">
<span style="color: red; font-size: large;"><i>Enter</i></span></blockquote>
</blockquote>
</div>
<div style="text-align: justify;">
<br /></div>
<div style="text-align: justify;">
<blockquote class="tr_bq">
<span style="font-family: "trebuchet ms" , sans-serif;">5. Melakukan Restart dengan mengetikkan perintah sebagai berikut :</span></blockquote>
</div>
<div style="text-align: justify;">
<blockquote class="tr_bq">
<blockquote class="tr_bq">
<i><span style="color: red; font-size: large;">root@tegar:~# /etc/init.d/networking restart</span></i></blockquote>
</blockquote>
</div>
<div style="text-align: justify;">
<br /></div>
<div style="text-align: justify;">
<blockquote class="tr_bq">
<span style="font-family: "trebuchet ms" , sans-serif;">6. Mengaktifkan Network Interface dengan mengetikkan perintah berikut :</span></blockquote>
</div>
<div style="text-align: justify;">
<blockquote class="tr_bq">
<blockquote class="tr_bq">
<span style="color: red; font-size: large;"><i>root@tegar:~# ifup eth0</i></span></blockquote>
</blockquote>
</div>
<div style="text-align: justify;">
<br />
<blockquote class="tr_bq">
<span style="font-family: "trebuchet ms" , sans-serif;">7. Menginstalasi DHCP dengan mengetikkan perintah berikut ini : </span></blockquote>
<blockquote class="tr_bq">
<blockquote class="tr_bq">
<i><span style="color: red; font-size: large;">apt-get install dhcp3-server</span></i></blockquote>
</blockquote>
</div>
<i><span style="color: red; font-size: large;"><br /></span></i></div>
<div style="text-align: justify;">
</div>
<div style="text-align: center;">
<div class="separator" style="clear: both; text-align: center;">
<a href="https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEi8F7Rx2t0iaIs3d0xk_L8xI2E3TaeXxiNeNMboM6v-hHjP3CS1Qz31o_JEURLnXutUM9aTjVaELcXpb8xI04MaS6hRBFKPQL8RTqRNQl4Due7vlyZoTG2yoTlBl-xwp6zS8aRFqzRj5Es/s1600/Capture2.PNG" imageanchor="1" style="margin-left: 1em; margin-right: 1em;"><img border="0" data-original-height="384" data-original-width="682" height="225" src="https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEi8F7Rx2t0iaIs3d0xk_L8xI2E3TaeXxiNeNMboM6v-hHjP3CS1Qz31o_JEURLnXutUM9aTjVaELcXpb8xI04MaS6hRBFKPQL8RTqRNQl4Due7vlyZoTG2yoTlBl-xwp6zS8aRFqzRj5Es/s400/Capture2.PNG" width="400" /></a></div>
</div>
<div style="text-align: justify;">
<div style="text-align: right;">
<div style="text-align: center;">
<br /></div>
<div style="text-align: center;">
<a href="https://simulasitugas.blogspot.com/2019/02/831-dhcp-picture.html" target="_blank">Klik di sini</a></div>
</div>
</div>
<blockquote class="tr_bq" style="text-align: justify;">
<blockquote class="tr_bq">
<span style="font-family: "trebuchet ms" , sans-serif;">Berikut tampilannya :</span></blockquote>
</blockquote>
<div style="text-align: justify;">
</div>
<div style="text-align: center;">
</div>
<div style="text-align: justify;">
<div style="text-align: right;">
<div style="text-align: center;">
<div class="separator" style="clear: both; text-align: center;">
<a href="https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEitWASOhAHCxWoHBa3lXHIK7wEWg46x7Jy8Osr9B3tExnE9lzlpuH5K_Rq7SNDz6zC-JTaGhxcqHNxVUQoSc9mZlBMMs4dgtCBeY38eh4vY7iw7jj5ktg9qwQVhLd-_i-LhjZ866rMirHM/s1600/Capture3.PNG" imageanchor="1" style="margin-left: 1em; margin-right: 1em;"><img border="0" data-original-height="401" data-original-width="706" height="226" src="https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEitWASOhAHCxWoHBa3lXHIK7wEWg46x7Jy8Osr9B3tExnE9lzlpuH5K_Rq7SNDz6zC-JTaGhxcqHNxVUQoSc9mZlBMMs4dgtCBeY38eh4vY7iw7jj5ktg9qwQVhLd-_i-LhjZ866rMirHM/s400/Capture3.PNG" width="400" /></a></div>
<br /></div>
<div style="text-align: center;">
<a href="https://simulasitugas.blogspot.com/2019/02/830-dhcp-picture.html" target="_blank">Klik di sini</a></div>
</div>
</div>
<blockquote class="tr_bq" style="text-align: justify;">
<blockquote class="tr_bq">
<span style="font-family: "trebuchet ms" , sans-serif;">Meskipun muncul tulisan <i><span style="color: blue;">failed </span></i>setelah install, tapi tidak masalah. Cukup di Abaikan / lewati saja</span></blockquote>
</blockquote>
<br />
<div style="text-align: justify;">
</div>
<div style="text-align: justify;">
<blockquote class="tr_bq">
<span style="font-family: "trebuchet ms" , sans-serif;">8. Konfigurasi DHCP dengan mengetikkan : </span></blockquote>
<blockquote class="tr_bq">
<blockquote class="tr_bq">
<i><span style="color: red; font-size: large;">nano /etc/dhcp/dhcpd.conf</span></i></blockquote>
</blockquote>
<i><span style="color: red; font-size: large;"><br /></span></i></div>
<div style="text-align: justify;">
</div>
<div style="text-align: center;">
<div class="separator" style="clear: both; text-align: center;">
<a href="https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgxe1aeIG30MsQqMWE46Ic__7hCMvMU8dPbDE3wSlsF07zXKXF3pAmK4UiMmH-WZVvFQnYvKBtnDj0ymiEbAkdj3qO8zEbW4xhVulyCM5XWIB-isH-wOrev_DoSSHsupU9y2uhhX8NKTBI/s1600/Capture4.PNG" imageanchor="1" style="margin-left: 1em; margin-right: 1em;"><img border="0" data-original-height="396" data-original-width="721" height="218" src="https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgxe1aeIG30MsQqMWE46Ic__7hCMvMU8dPbDE3wSlsF07zXKXF3pAmK4UiMmH-WZVvFQnYvKBtnDj0ymiEbAkdj3qO8zEbW4xhVulyCM5XWIB-isH-wOrev_DoSSHsupU9y2uhhX8NKTBI/s400/Capture4.PNG" width="400" /></a></div>
</div>
<div style="text-align: justify;">
</div>
<div style="text-align: center;">
Gambar Tampilan awal sebelum di ubah
<br />
<div style="text-align: right;">
<a href="https://simulasitugas.blogspot.com/2019/02/824-dhcp-picture.html" target="_blank">Klik di sini</a></div>
</div>
<div style="text-align: center;">
</div>
<span style="font-family: "trebuchet ms" , sans-serif;"></span><br />
<div style="text-align: justify;">
<span style="font-family: "trebuchet ms" , sans-serif;"><br /></span></div>
<span style="font-family: "trebuchet ms" , sans-serif;">
</span>
<br />
<blockquote class="tr_bq">
<span style="font-family: "trebuchet ms" , sans-serif;"><span style="color: red; font-size: large;"><i>Tekan Ctrl W</i></span></span></blockquote>
<span style="font-family: "trebuchet ms" , sans-serif;">
</span>
<br />
<blockquote class="tr_bq">
<span style="font-family: "trebuchet ms" , sans-serif;"><span style="color: red; font-size: large;"><i>Ketik : A slightly </i></span></span></blockquote>
<span style="font-family: "trebuchet ms" , sans-serif;">
</span>
<br />
<blockquote class="tr_bq">
<span style="font-family: "trebuchet ms" , sans-serif;"><span style="color: red; font-size: large;"><i>Tekan Enter </i></span></span></blockquote>
<span style="font-family: "trebuchet ms" , sans-serif;">
</span>
<br />
<blockquote class="tr_bq" style="text-align: justify;">
<span style="font-family: "trebuchet ms" , sans-serif;">Kemudian, lakukan langkah ini :</span></blockquote>
<span style="font-family: "trebuchet ms" , sans-serif;">
</span>
<br />
<div style="text-align: justify;">
<ul><span style="font-family: "trebuchet ms" , sans-serif;">
<li><span style="font-family: "trebuchet ms" , sans-serif;"><div style="text-align: justify;">
Hapus tanda pagar (#) dari subnet hingga tanda tutup kurawal </div>
</span></li>
<li><span style="font-family: "trebuchet ms" , sans-serif;"><div style="text-align: justify;">
Ubah IP Subnet menjadi IP Network dan Netmask yang sesuai </div>
</span></li>
<li><div style="text-align: justify;">
Isi range yang berarti rentang ip yang akan dipinjamkan ke client </div>
</li>
<li><div style="text-align: justify;">
Option domain name servers di isi alamat ip pada DNS server</div>
</li>
<li><div style="text-align: justify;">
Option routers di isi IP Router </div>
</li>
<li><div style="text-align: justify;">
Option broadcast address di isi dengan ip broadcast </div>
</li>
<li><div style="text-align: justify;">
Default lease time dan max-lease-time berarti lama waktu peminjaman IP, bisa diatur sesuai keinginan</div>
</li>
</span></ul>
<blockquote class="tr_bq">
<span style="font-family: "trebuchet ms" , sans-serif;"><i style="color: red; font-family: "Trebuchet MS"; font-size: x-large;">Ctrl+X<br />Y<br />Enter</i></span></blockquote>
<blockquote class="tr_bq">
<span style="font-family: "trebuchet ms" , sans-serif;">Untuk Menyimpan)</span></blockquote>
</div>
<span style="font-family: "trebuchet ms" , sans-serif;">
</span>
<br />
<div style="text-align: justify;">
<ul>
</ul>
</div>
<div style="text-align: center;">
<div class="separator" style="clear: both; text-align: center;">
<a href="https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgxe1aeIG30MsQqMWE46Ic__7hCMvMU8dPbDE3wSlsF07zXKXF3pAmK4UiMmH-WZVvFQnYvKBtnDj0ymiEbAkdj3qO8zEbW4xhVulyCM5XWIB-isH-wOrev_DoSSHsupU9y2uhhX8NKTBI/s1600/Capture4.PNG" imageanchor="1" style="margin-left: 1em; margin-right: 1em;"><img border="0" data-original-height="396" data-original-width="721" height="218" src="https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgxe1aeIG30MsQqMWE46Ic__7hCMvMU8dPbDE3wSlsF07zXKXF3pAmK4UiMmH-WZVvFQnYvKBtnDj0ymiEbAkdj3qO8zEbW4xhVulyCM5XWIB-isH-wOrev_DoSSHsupU9y2uhhX8NKTBI/s400/Capture4.PNG" width="400" /></a></div>
</div>
<div style="text-align: justify;">
</div>
<div style="text-align: center;">
Gambar tampilan setelah diubah
<br />
<div style="text-align: right;">
<a href="https://simulasitugas.blogspot.com/2019/02/829-dhcp-picture.html" target="_blank">Klik di sini</a></div>
</div>
<div style="text-align: justify;">
<br />
<br />
<blockquote class="tr_bq">
<span style="font-family: "trebuchet ms" , sans-serif;">9. Mengedit isc-dhcp-server dengan mengetikkan perintah : </span></blockquote>
<blockquote class="tr_bq">
<blockquote class="tr_bq">
<i><span style="color: red; font-size: large;">nano /etc/default/isc-dhcp-server</span></i> ,</blockquote>
</blockquote>
<blockquote class="tr_bq">
<blockquote class="tr_bq">
<span style="font-family: "trebuchet ms" , sans-serif;">Ubah interfacesnya menjadi ethernet yang sesuai pada langkah 1 </span></blockquote>
</blockquote>
<blockquote class="tr_bq">
<blockquote class="tr_bq">
(<span style="color: blue;"><span style="font-size: large;">eth0</span> </span>atau <span style="color: blue; font-size: large;">eth1</span>) </blockquote>
</blockquote>
<div class="separator" style="clear: both; text-align: center;">
<a href="https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjMlOjCDvaEg69FgvCRBO8ijVn2ZPeWKbOsLBIS1lJuidWn38AdEnWgwwFuDI5UNsByVxDf7af9FEqJmTcXepuIauyGoHHAdHRmUYSqjqBSu9_o0Nj0d2cC4w2CZzIqZHS4djCT62S4FDw/s1600/Capture5.PNG" imageanchor="1" style="margin-left: 1em; margin-right: 1em;"><img border="0" data-original-height="403" data-original-width="715" height="225" src="https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjMlOjCDvaEg69FgvCRBO8ijVn2ZPeWKbOsLBIS1lJuidWn38AdEnWgwwFuDI5UNsByVxDf7af9FEqJmTcXepuIauyGoHHAdHRmUYSqjqBSu9_o0Nj0d2cC4w2CZzIqZHS4djCT62S4FDw/s400/Capture5.PNG" width="400" /></a></div>
<br />
<blockquote class="tr_bq">
<blockquote class="tr_bq">
<a href="https://simulasitugas.blogspot.com/2019/02/833-dhcp-picture.html" style="text-align: right;" target="_blank">Klik di sini</a></blockquote>
</blockquote>
</div>
<div style="text-align: justify;">
</div>
<div style="text-align: justify;">
<blockquote class="tr_bq">
<blockquote class="tr_bq">
<span style="font-family: "trebuchet ms" , sans-serif;">Setelah itu simpan dengan menekan :</span></blockquote>
</blockquote>
<blockquote class="tr_bq">
<br />
<blockquote class="tr_bq">
<i style="color: red; font-size: x-large;">Ctrl+X</i></blockquote>
<blockquote class="tr_bq">
<i style="color: red; font-size: x-large;">Y</i></blockquote>
<blockquote class="tr_bq">
<i style="color: red; font-size: x-large;">Enter</i></blockquote>
</blockquote>
<br />
<blockquote class="tr_bq">
<span style="font-family: "trebuchet ms" , sans-serif;">10. Merestart file isc-dhcp-server dengan mengetikkan perintah :</span></blockquote>
</div>
<div style="text-align: justify;">
</div>
<div style="text-align: justify;">
<blockquote class="tr_bq">
<blockquote class="tr_bq">
<i><span style="color: red; font-size: large;">service isc-dhcp-server restart</span></i></blockquote>
</blockquote>
</div>
<div style="text-align: justify;">
</div>
<div style="text-align: justify;">
</div>
<div style="text-align: center;">
</div>
<div style="text-align: justify;">
<div style="text-align: right;">
<br />
<div style="text-align: center;">
<a href="https://simulasitugas.blogspot.com/2019/02/826-dhcp-picture.html" target="_blank">Klik di sini</a></div>
</div>
</div>
<div style="text-align: justify;">
<blockquote class="tr_bq">
<blockquote class="tr_bq">
<span style="font-family: "trebuchet ms" , sans-serif;">Dan Konfigurasi DHCP Server telah berhasil dibuat</span></blockquote>
</blockquote>
</div>
<div style="text-align: justify;">
</div>
<div style="text-align: justify;">
<blockquote class="tr_bq">
<blockquote class="tr_bq">
<br /></blockquote>
</blockquote>
</div>
</div>
<br /></div>
</div>
</div>
<div style="text-align: center;">
<br /></div>
</div>
<div dir="ltr" trbidi="on">
<div style="text-align: center;">
<div style="text-align: justify;">
<div style="text-align: justify;">
<div style="text-align: justify;">
<span style="background-color: white; color: blue; font-family: "trebuchet ms" , sans-serif; font-size: large; text-align: left;">V. PERTANYAAN</span></div>
</div>
</div>
</div>
<div style="text-align: justify;">
<span style="font-family: "trebuchet ms" , sans-serif;"><br /></span></div>
<blockquote class="tr_bq">
1. TULISKAN PERINTAH UNTUK MELAKUKAN CEK INTERFACE SERVER DEBIAN APAKAH MENGGUNAKAN ETH0 ATAUKAH ETH1 ! </blockquote>
<blockquote class="tr_bq">
2. JELASKAN MAKSUD DARI PERINTAH INI : ROOT@DEBYAN666:~# NANO /ETC/NETWORK/INTERFACES </blockquote>
<blockquote class="tr_bq">
3. TULISKAN TEXT YANG AKAN MUNCUL SETELAH MELAKUKAN PERINTAH : ROOT@DEBYAN666:~# NANO /ETC/NETWORK/INTERFACES </blockquote>
<blockquote class="tr_bq">
4. TULISAN ALLOW-HOTPLUG ETH0 , IFACE ETH0 INET DHCP HARUS DIGANTI, TULISKAN TULISAN PENGGANTINYA </blockquote>
<blockquote class="tr_bq">
5. UNTUK MENULISKAN KONFIGURASI IP DI SERVER HARUS SESUAI DENGAN KONFIGURASI IP DI WINDOWS. DIMANAKAH KONFIGURASI WINDOWS BISA DITEMUKAN ? </blockquote>
<blockquote class="tr_bq">
6. SETELAH MENENTUKAN KONFIGURASI IP , TULISKAN PERINTAH UNTUK MELAKUKAN RESTART </blockquote>
<blockquote class="tr_bq">
7. JELASKAN MAKSUD DARI PERINTAH INI : ROOT@DEBYAN666:~# /ETC/INIT.D/NETWORKING RESTART </blockquote>
<blockquote class="tr_bq">
8. SETELAH MELAKUKAN RESTART, TULISKAN PERINTAH UNTUK MENGAKTIFKAN NETWORK INTERFACE </blockquote>
<blockquote class="tr_bq">
9. JELASKAN MAKSUD DARI PERINTAH INI : ROOT@DEBYAN666:~# IFUP ETH0 </blockquote>
<div style="text-align: justify;">
<br /></div>
<div style="text-align: center;">
<div style="text-align: justify;">
<div style="text-align: justify;">
<span style="background-color: white; text-align: left;"><span style="font-family: "trebuchet ms" , sans-serif;"><br /></span></span></div>
</div>
</div>
<span style="background-color: white; text-align: left;">
</span>
<br />
<div style="text-align: center;">
<div style="text-align: justify;">
<div style="text-align: justify;">
<div style="text-align: justify;">
<span style="background-color: white; color: blue; font-family: "trebuchet ms" , sans-serif; font-size: large;">VI. JAWABAN PERTANYAAN</span></div>
</div>
</div>
</div>
<div style="text-align: justify;">
<div style="text-align: center;">
<br /></div>
</div>
<div style="text-align: justify;">
<div style="text-align: center;">
<br /></div>
</div>
<div style="text-align: justify;">
<div style="text-align: center;">
<br /></div>
</div>
<div style="text-align: justify;">
<div style="text-align: center;">
<br /></div>
</div>
<div>
</div>
</div>
<div dir="ltr" style="text-align: left;" trbidi="on">
<div style="text-align: center;">
<br /></div>
</div>
</div>
